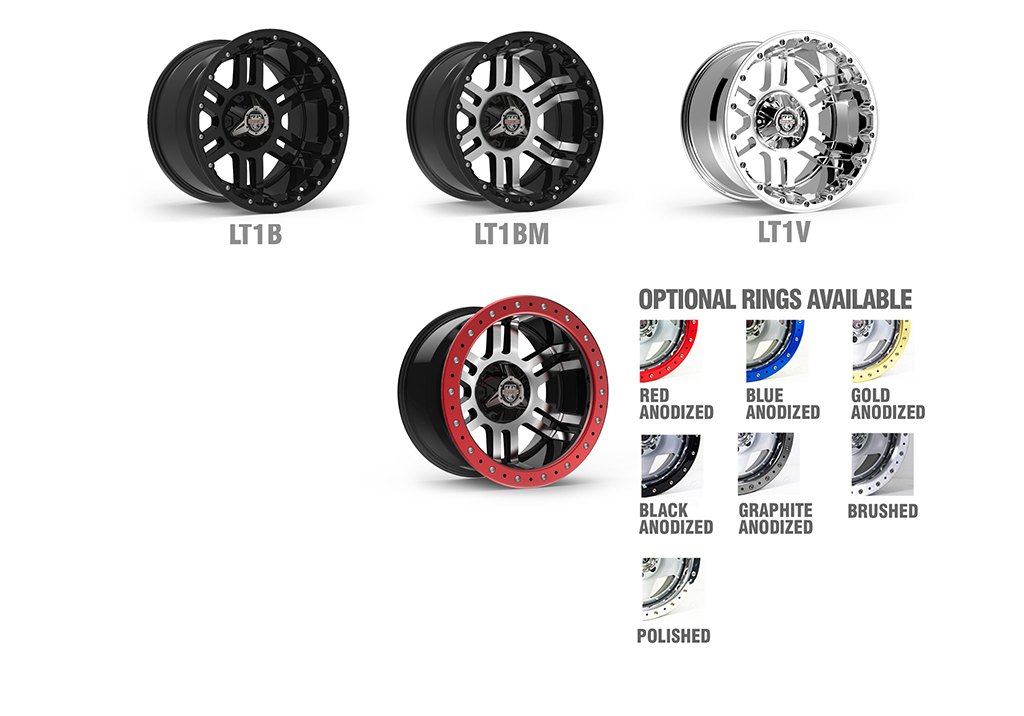

| LT 1B GLOSS BLACK |
| PART NUMBER |
SIZE |
PCD |
OFFSET |
BACK SPACING |
CAP |
LOAD RATING |
HUB BORE |
| CLT1-179051427Q00B |
17X9 |
5x114.3/127 |
0 |
5.00 |
CAP-CLS6B-UR |
2500 |
78.1 |
| CLT1-179051427P18B |
17X9 |
5x114.3/127 |
+18 |
5.71 |
CAP-CLS6B-UR |
2500 |
78.1 |
| CLT1-179053539P18B |
17X9 |
5x135/139.7##### |
+18 |
5.71 |
CAP-CLS6B-UR |
2500 |
87.1 |
| CLT1-17906120P18B |
17X9 |
6x120 |
+18 |
5.71 |
CAP-CLS6B-UR |
2500 |
67.1 |
| CLT1-179063539P18B |
17X9 |
6x135/139.7# |
+18 |
5.71 |
CAP-CLS6B-UR |
2500 |
108 |
| CLT1-17908165P18B |
17X9 |
8x165.1 |
+18 |
5.71 |
CAP-CLS8B-UR |
3700 |
125.2 |
| CLT1-17908170O18B |
17X9 |
8x170 |
+18 |
5.71 |
CAP-CLS8B-UR |
3700 |
125.2 |
| CLT1-17908180P18B |
17X9 |
8x180 |
+18 |
5.71 |
CAP-CLS8B-UR |
3700 |
125.2 |
| CLT1-17900000P18B |
17X9 |
Blank (5/6) |
+18 |
5.71 |
CAP-CLS6B-UR |
2500 |
87.1 |
| CLT1-17908000P18B |
17X9 |
Blank (8) |
+18 |
5.71 |
CAP-CLS8B-UR |
3700 |
125.2 |
| CLT1-209051427Q00B |
20X9 |
5x114.3/127 |
0 |
5 |
CAP-CLS6B-UR |
2500 |
78.1 |
| CLT1-209051427P18B |
20X9 |
5x114.3/127 |
+18 |
5.71 |
CAP-CLS6B-UR |
2500 |
78.1 |
| CLT1-209053539P18B |
20X9 |
5x135/139.7##### |
+18 |
5.71 |
CAP-CLS6B-UR |
2500 |
87.1 |
| CLT1-20905150P25B |
20X9 |
5x150 |
+25 |
5.98 |
CAP-CLS6B-UR |
2500 |
110.2 |
| CLT1-20906120P18B |
20X9 |
6x120 |
+18 |
5.71 |
CAP-CLS6B-UR |
2500 |
67.1 |
| CLT1-209063539P18B |
20X9 |
6x135/139.7# |
+18 |
5.71 |
CAP-CLS6B-UR |
2500 |
108 |
| CLT1-20908165P18B |
20X9 |
8x165.1 |
+18 |
5.71 |
CAP-CLS8B-UR |
3700 |
125.2 |
| CLT1-20908170P18B |
20X9 |
8x170 |
+18 |
5.71 |
CAP-CLS8B-UR |
3700 |
125.2 |
| CLT1-20908180P18B |
20X9 |
8x180 |
+18 |
5.71 |
CAP-CLS8B-UR |
3700 |
125.2 |
| CLT1-20900000P18B |
20X9 |
Blank (5/6) |
+18 |
5.71 |
CAP-CLS6B-UR |
2500 |
87.1 |
| CLT1-20908000P18B |
20X9 |
Blank (8) |
+18 |
5.71 |
CAP-CLS8B-UR |
3700 |
125.2 |
| CLT1-201251427N44B |
20X12 |
5X114.3/5X127 |
-44 |
4.75" |
CLS6 |
2500 |
78.1 |
| CLT1-201253539N44B |
20X12 |
5X135/5X139.7 |
-44 |
4.75" |
CLS6 |
2500 |
87.1 |
| CLT1-20125150N44B |
20X12 |
5X150 |
-44 |
4.75" |
CLS6 |
2500 |
110.2 |
| CLT1-201263539N44B |
20X12 |
6X135/6X139.7 |
-44 |
4.75" |
CLS6 |
2500 |
108 |
| CLT1-20128165N44B |
20X12 |
8X165.1 |
-44 |
4.75" |
CLS8 |
3700 |
125.2 |
| CLT1-20128170N44B |
20X12 |
8X170 |
-44 |
4.75" |
CLS8 |
3700 |
125.2 |
| CLT1-20128180N44B |
20X12 |
8X180 |
-44 |
4.75" |
CLS8 |
3700 |
125.2 |
| CLT1-20120000N44B |
20X12 |
(5/6)Blank |
-44 |
4.75" |
CLS6 |
2500 |
78.1 |
| CLT1-20128000N44B |
20X12 |
Blank |
-44 |
4.75" |
CLS8 |
3700 |
125.2 |
| ACCESSORIES |
| CAP-CLS6B-UR |
FIVE/SIX LUG GLOSS BLACK COVER CAP WITH BRUSHED RING AND RED LOGO BACKGROUND |
| CAP-CLS8B-UR |
EIGHT LUG GLOSS BLACK COVER CAP WITH BRUSHED RING AND RED LOGO BACKGROUND |
| 18X PAN HEAD BOLTS |
12MM HEAD HEX DRIVE PAN HEAD BOLT ALUMINUM |
| 15MM SPACER |
SPACER 15MM WITH 30MM BOLT |
| BEAD LOCK RING |
OPTIONAL, (VARIABLE COLOR OPTIONS) |
| 18X PAN HEAD BOLTS |
22MM HEAD HEX DRIVE PAN HEAD BOLT ALUMINUM FOR BEAD LOCK RING |
| # |
Hub Ring108-87.1 / Hub Ring 108-78.1 |
| ## |
Hub Ring 110.2-78.1 |
| ### |
Hub Ring 106.2-78.1 |
| #### |
Hub Ring 78.1-71.5 |
| ##### |
Hub Ring 87-78.1 |
|
| LT 1C CHROME |
| PART NUMBER |
SIZE |
PCD |
OFFSET |
BACK SPACING |
CAP |
LOAD RATING |
HUB BORE |
| |
17X9 |
5x114.3/127 |
0 |
5.00 |
CAP-CLS6C-UR |
2500 |
78.1 |
| |
17X9 |
5x114.3/127 |
+18 |
5.71 |
CAP-CLS6C-UR |
2500 |
78.1 |
| |
17X9 |
5x135/139.7##### |
+18 |
5.71 |
CAP-CLS6C-UR |
2500 |
87.1 |
| |
17X9 |
6x120 |
+18 |
5.71 |
CAP-CLS6C-UR |
2500 |
67.1 |
| |
17X9 |
6x135/139.7# |
+18 |
5.71 |
CAP-CLS6C-UR |
2500 |
108 |
| |
17X9 |
8x165.1 |
+18 |
5.71 |
CAP-CLS8C-UR |
3700 |
125.2 |
| |
17X9 |
8x170 |
+18 |
5.71 |
CAP-CLS8C-UR |
3700 |
125.2 |
| |
17X9 |
8x180 |
+18 |
5.71 |
CAP-CLS8C-UR |
3700 |
125.2 |
| |
17X9 |
Blank (5/6) |
+18 |
5.71 |
CAP-CLS6C-UR |
2500 |
87.1 |
| |
17X9 |
Blank (8) |
+18 |
5.71 |
CAP-CLS8C-UR |
3700 |
125.2 |
| |
20X9 |
5x114.3/127 |
0 |
5 |
CAP-CLS6C-UR |
2500 |
78.1 |
| |
20X9 |
5x114.3/127 |
+18 |
5.71 |
CAP-CLS6C-UR |
2500 |
78.1 |
| |
20X9 |
5x135/139.7##### |
+18 |
5.71 |
CAP-CLS6C-UR |
2500 |
87.1 |
| |
20X9 |
5x150 |
+25 |
5.98 |
CAP-CLS6C-UR |
2500 |
110.2 |
| |
20X9 |
6x120 |
+18 |
5.71 |
CAP-CLS6C-UR |
2500 |
67.1 |
| |
20X9 |
6x135/139.7# |
+18 |
5.71 |
CAP-CLS6C-UR |
2500 |
108 |
| |
20X9 |
8x165.1 |
+18 |
5.71 |
CAP-CLS8C-UR |
3700 |
125.2 |
| |
20X9 |
8x170 |
+18 |
5.71 |
CAP-CLS8C-UR |
3700 |
125.2 |
| |
20X9 |
8x180 |
+18 |
5.71 |
CAP-CLS8C-UR |
3700 |
125.2 |
| |
20X9 |
Blank (5/6) |
+18 |
5.71 |
CAP-CLS6C-UR |
2500 |
87.1 |
| |
20X9 |
Blank (8) |
+18 |
5.71 |
CAP-CLS8C-UR |
3700 |
125.2 |
| CLT1-201251427N44C |
20X12 |
5X114.3/5X127 |
-44 |
4.75" |
CLS6 |
2500 |
78.1 |
| CLT1-201253539N44C |
20X12 |
5X135/5X139.7 |
-44 |
4.75" |
CLS6 |
2500 |
87.1 |
| CLT1-20125150N44C |
20X12 |
5X150 |
-44 |
4.75" |
CLS6 |
2500 |
110.2 |
| CLT1-201263539N44C |
20X12 |
6X135/6X139.7 |
-44 |
4.75" |
CLS6 |
2500 |
108 |
| CLT1-20128165N44C |
20X12 |
8X165.1 |
-44 |
4.75" |
CLS8 |
3700 |
125.2 |
| CLT1-20128170N44C |
20X12 |
8X170 |
-44 |
4.75" |
CLS8 |
3700 |
125.2 |
| CLT1-20128180N44C |
20X12 |
8X180 |
-44 |
4.75" |
CLS8 |
3700 |
125.2 |
| CLT1-20120000N44C |
20X12 |
(5/6)Blank |
-44 |
4.75" |
CLS6 |
2500 |
78.1 |
| CLT1-20128000N44C |
20X12 |
Blank |
-44 |
4.75" |
CLS8 |
3700 |
125.2 |
| ACCESSORIES |
| CAP-CLS6C-UR |
FIVE/SIX LUG GLOSS BLACK COVER CAP WITH BRUSHED RING AND RED LOGO BACKGROUND |
| CAP-CLS8C-UR |
EIGHT LUG GLOSS BLACK COVER CAP WITH BRUSHED RING AND RED LOGO BACKGROUND |
| 18X PAN HEAD BOLTS |
12MM HEAD HEX DRIVE PAN HEAD BOLT ALUMINUM |
| 15MM SPACER |
SPACER 15MM WITH 30MM BOLT |
| BEAD LOCK RING |
OPTIONAL, (VARIABLE COLOR OPTIONS) |
| 18X PAN HEAD BOLTS |
22MM HEAD HEX DRIVE PAN HEAD BOLT ALUMINUM FOR BEAD LOCK RING |
| # |
Hub Ring108-87.1 / Hub Ring 108-78.1 |
| ## |
Hub Ring 110.2-78.1 |
| ### |
Hub Ring 106.2-78.1 |
| #### |
Hub Ring 78.1-71.5 |
| ##### |
Hub Ring 87-78.1 |
|
| LT 1MB MACHINED GLOSS BLACK |
| PART NUMBER |
SIZE |
PCD |
OFFSET |
BACK SPACING |
CAP |
LOAD RATING |
HUB BORE |
| |
17X9 |
5x114.3/127 |
0 |
5.00 |
CAP-CLS6B-UR |
2500 |
78.1 |
| |
17X9 |
5x114.3/127 |
+18 |
5.71 |
CAP-CLS6B-UR |
2500 |
78.1 |
| |
17X9 |
5x135/139.7##### |
+18 |
5.71 |
CAP-CLS6B-UR |
2500 |
87.1 |
| |
17X9 |
6x120 |
+18 |
5.71 |
CAP-CLS6B-UR |
2500 |
67.1 |
| |
17X9 |
6x135/139.7# |
+18 |
5.71 |
CAP-CLS6B-UR |
2500 |
108 |
| |
17X9 |
8x165.1 |
+18 |
5.71 |
CAP-CLS8B-UR |
3700 |
125.2 |
| |
17X9 |
8x170 |
+18 |
5.71 |
CAP-CLS8B-UR |
3700 |
125.2 |
| |
17X9 |
8x180 |
+18 |
5.71 |
CAP-CLS8B-UR |
3700 |
125.2 |
| |
17X9 |
Blank (5/6) |
+18 |
5.71 |
CAP-CLS6B-UR |
2500 |
87.1 |
| |
17X9 |
Blank (8) |
+18 |
5.71 |
CAP-CLS8B-UR |
3700 |
125.2 |
| |
20X9 |
5x114.3/127 |
0 |
5 |
CAP-CLS6B-UR |
2500 |
78.1 |
| |
20X9 |
5x114.3/127 |
+18 |
5.71 |
CAP-CLS6B-UR |
2500 |
78.1 |
| |
20X9 |
5x135/139.7##### |
+18 |
5.71 |
CAP-CLS6B-UR |
2500 |
87.1 |
| |
20X9 |
5x150 |
+25 |
5.98 |
CAP-CLS6B-UR |
2500 |
110.2 |
| |
20X9 |
6x120 |
+18 |
5.71 |
CAP-CLS6B-UR |
2500 |
67.1 |
| |
20X9 |
6x135/139.7# |
+18 |
5.71 |
CAP-CLS6B-UR |
2500 |
108 |
| |
20X9 |
8x165.1 |
+18 |
5.71 |
CAP-CLS8B-UR |
3700 |
125.2 |
| |
20X9 |
8x170 |
+18 |
5.71 |
CAP-CLS8B-UR |
3700 |
125.2 |
| |
20X9 |
8x180 |
+18 |
5.71 |
CAP-CLS8B-UR |
3700 |
125.2 |
| |
20X9 |
Blank (5/6) |
+18 |
5.71 |
CAP-CLS6B-UR |
2500 |
87.1 |
| |
20X9 |
Blank (8) |
+18 |
5.71 |
CAP-CLS8B-UR |
3700 |
125.2 |
| CLT1-201251427N44MB |
20X12 |
5X114.3/5X127 |
-44 |
4.75" |
CLS6 |
2500 |
78.1 |
| CLT1-201253539N44MB |
20X12 |
5X135/5X139.7 |
-44 |
4.75" |
CLS6 |
2500 |
87.1 |
| CLT1-20125150N44MB |
20X12 |
5X150 |
-44 |
4.75" |
CLS6 |
2500 |
110.2 |
| CLT1-201263539N44MB |
20X12 |
6X135/6X139.7 |
-44 |
4.75" |
CLS6 |
2500 |
108 |
| CLT1-20128165N44MB |
20X12 |
8X165.1 |
-44 |
4.75" |
CLS8 |
3700 |
125.2 |
| CLT1-20128170N44MB |
20X12 |
8X170 |
-44 |
4.75" |
CLS8 |
3700 |
125.2 |
| CLT1-20128180N44MB |
20X12 |
8X180 |
-44 |
4.75" |
CLS8 |
3700 |
125.2 |
| CLT1-20120000N44MB |
20X12 |
(5/6)Blank |
-44 |
4.75" |
CLS6 |
2500 |
78.1 |
| CLT1-20128000N44MB |
20X12 |
Blank |
-44 |
4.75" |
CLS8 |
3700 |
125.2 |
| ACCESSORIES |
| CAP-CLS6B-UR |
FIVE/SIX LUG GLOSS BLACK COVER CAP WITH BRUSHED RING AND RED LOGO BACKGROUND |
| CAP-CLS8B-UR |
EIGHT LUG GLOSS BLACK COVER CAP WITH BRUSHED RING AND RED LOGO BACKGROUND |
| 18X PAN HEAD BOLTS |
12MM HEAD HEX DRIVE PAN HEAD BOLT ALUMINUM |
| 15MM SPACER |
SPACER 15MM WITH 30MM BOLT |
| BEAD LOCK RING |
OPTIONAL, (VARIABLE COLOR OPTIONS) |
| 18X PAN HEAD BOLTS |
22MM HEAD HEX DRIVE PAN HEAD BOLT ALUMINUM FOR BEAD LOCK RING |
| # |
Hub Ring108-87.1 / Hub Ring 108-78.1 |
| ## |
Hub Ring 110.2-78.1 |
| ### |
Hub Ring 106.2-78.1 |
| #### |
Hub Ring 78.1-71.5 |
| ##### |
Hub Ring 87-78.1 |
|
